SV3-19026
- 所属分类：工控主板
- 二维码：
-

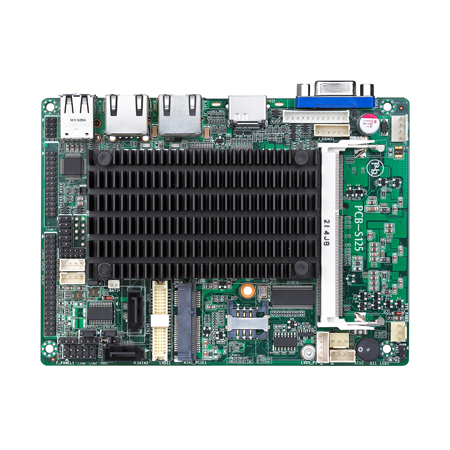

Intel Bay Trail J1900处理器, 6*COM, 2*LAN, 2*Mini-PCIe, DC 12V供电, 3.5英寸 (146*105mm)
- 产品描述
规格General
CPU
Intel® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP10W
Chipset
Null
Memory
Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM
Storage
1*SATA 2.0, 1*mSATA
Expansion Interface
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux, Android
I/O Interface
Serial Port
6*RS232 (COM6 RS485 optional)
USB
7*USB 2.0 (2*on rear I/O, 5*header) Ethernet 2*Realtek® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts PS/2
1*PS/2 (Keyboard and Mouse Supported) Parallel Port
1*LPT GPIO
8 programmable GPIO Feature Interface
Null Display
Display Interface
1*VGA: max resolution up to 2560*1600
1*LVDS: Dual Channel 24bit, max resolution up to 1920*1200
Multiple Display
Dual Mechanical & Environment
Dimension
3.5'', 146*105mm
Power Input
DC 12V Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
