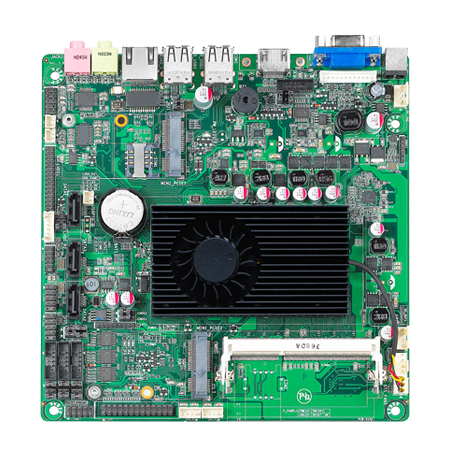

SV1a-13714P
- 所属分类：工控主板
- 二维码：
-
Intel Celeron 1037U处理器, 1*VGA, 1*HDMI, 1*LVDS, 1* LAN, 2*Mini-PCIe, DC 12V供电
- 产品描述
- 规格
General
CPU
Intel® Celeron® 1037U CPU, Dual-core,1.8GHz, TDP 17W
Chipset
Intel® NM70 Chipset, TDP 4.1W
Memory
Up to 8 GB DDR3 1600/1333 MHz, 1*SO-DIMM
Storage
1*SATA 3.0, 2*SATA 2.0, 1*mSATA
Expansion Interface
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows XP/7/8/10, Linux

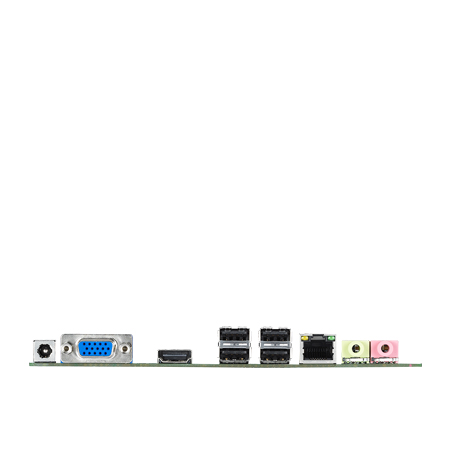

I/O Interface
Serial Port
4*RS232 (COM3 TTL optional)
USB
7*USB 2.0 (4*on rear I/O, 3*header) Ethernet 1*Realtek® PCI-E LAN for 100Mbps
Audio
Realtek® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports
1*AmplifierPS/2
1*PS/2 (Keyboard and Mouse Supported) Parallel Port
1* LPT GPIO
8 programmable GPIO Feature Interface
Null Display
Display Interface
1*VGA: max resolution up to 2048*1536
1*HDMI: max resolution up to 1920*1200
1*LVDS: Dual Channel24bit, max resolution up to 1920*1200
Multiple Display
Dual Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
DC 12V Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
