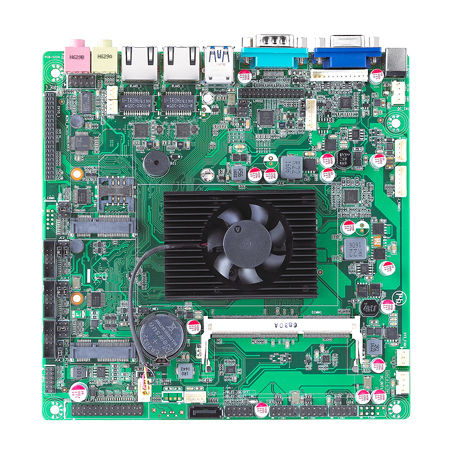

SV1a-38524P-C
- 所属分类：工控主板
- 二维码：
-
Intel Skylake-U 3855U处理器, 4*COM , 2*LAN, 2*Mini-PCIe, DC 12V供电, 薄型 Mini-ITX (170*170mm)
- 产品描述
规格General
CPU
Intel® Skylake-U 3855U CPU, Dual-core, 1.6GHz, TDP 15W
Chipset
Null
Memory
Up to 8 GB DDR3L 1866/1600 MHz, 1*SO-DIMM
Storage
2*SATA 3.0, 1*mSATA
Expansion Interface
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux

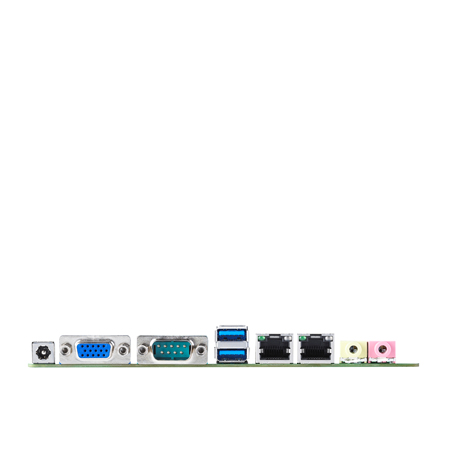

I/O Interface
Serial Port
4*RS232 (COM3 TTL optional)
USB
2*USB 3.0, 7*USB 2.0 (4*on rear I/O, 5*header) Ethernet 2*Realtek® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports
1*AmplifierPS/2
1*PS/2 (Keyboard and Mouse Supported) Parallel Port
1*LPT GPIO
8 programmable GPIO Feature Interface
1*Cash Drawer wafer Display
Display Interface
1*VGA: max resolution up to 1920*1200
1*LVDS/eDP: DualChannel 24bit LVDS, max resolution up to 1920*1200;
eDP max resolution up to1920*1080
Multiple Display
Dual Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
DC 12V Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
