- 产品描述
规格General
CPU
Intel® Pentium®/ Celeron®/ 2nd and 3rd Generation CoreTM i3/i5/i7 CPU, LGA1155
Chipset
Intel® H61 Chipset, TDP 6.1W
Memory
Up to 16 GB DDR3 1333/1066 MHz, 2*DIMM
Storage
2*SATA 2.0
Expansion Interface
1*PCI-E 16X, 1*Mini-PCIe（Wifi/3G/4G Supported）
BIOS
AMI UEFI BIOS
System
Windows XP/7/8/10, Linux

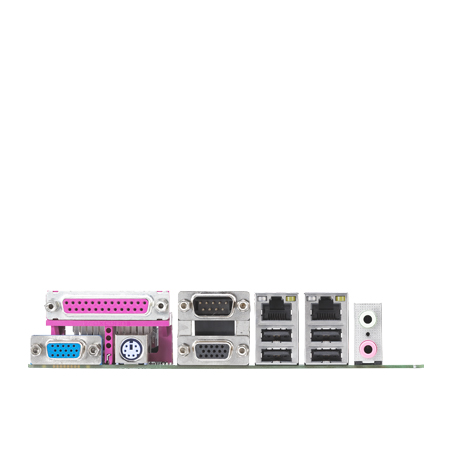

I/O Interface
Serial Port
10*RS232（COM3 RS485 optional）
USB
8*USB 2.0（4*on rear I/O, 4*header） Ethernet 2*Realtek® PCI-E LAN for 1000Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts PS/2
1*PS/2 (Keyboard and Mouse Supported) Parallel Port
1* LPT
GPIO
8 programmable GPIO Feature Interface
Null Display
Display Interface
2*VGA：max resolution up to 1920*1200
1*LVDS：Dual Channel 24bit, maxresolution up to 1920*1200
Multiple Display
Dual Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
ATX PSU Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
