详细内容
规格
|

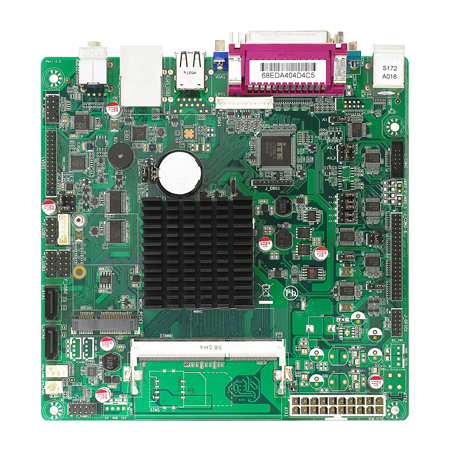

General |
|
|
CPU |
Intel® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP10W |
|
Chipset |
Null |
|
Memory |
Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM |
|
Storage |
2*SATA 2.0 |
|
Expansion Interface |
1*Mini-PCIe (Wifi Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 7/8/10, Linux, Android |
|

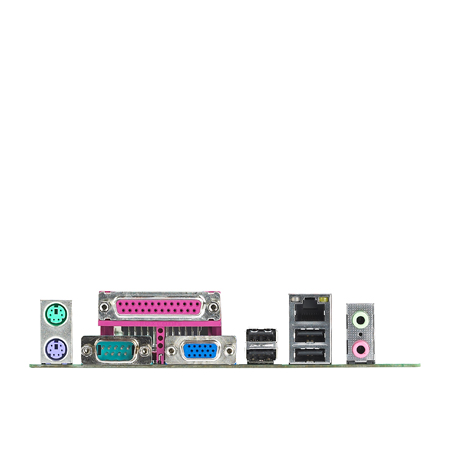

I/O Interface |
|
|
Serial Port |
6*RS232 (COM3 TTL optional) |
|
USB |
10*USB 2.0 (4*on rear I/O, 6*header) |
| Ethernet |
1*Realtek® PCI-E LAN for 100Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
1*LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 2560*1600 1*LVDS: Dual Channel24bit, max resolution up to 1920*1200 |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
Mini-ITX, 170*170mm |
|
Power Input |
ATX PSU |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
